PROBAT P 01

The P series represents a whole new generation of specialty roasters. All models are equipped with a number of advanced technical features, such as the new software with extended functionality. Multiple additional design options make the P series unique for every roastery. Altogether there are four different models available, with batch sizes between one and 30 kilograms and a roasting capacity of four to 85 kilograms of roast coffee per hour.

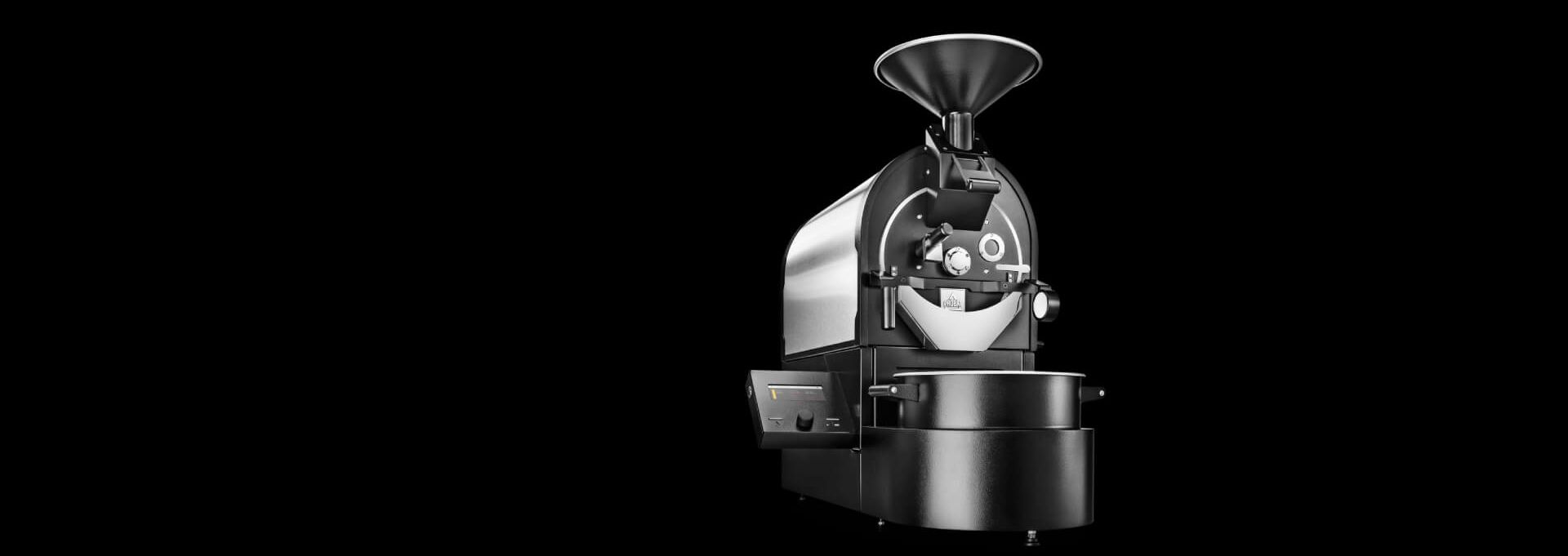

The youngest and smallest member of the P series is the P01. This was specially designed for smaller operations as well as for test roasting. With a recommended batch size of one kilogram, the P01 is ideal for producing, tasting, and optimizing smaller quantities of roast coffee. Despite its compact dimensions, it benefits from the advanced control systems of the P series.

Step by step, PROBAT is supplementing its specialty roaster portfolio with electrically operated versions. The P01, P05e, P12e and P25e each have the same advanced features as the gas-heated models of the P series. The unique electrical hot air blower responds as instantly as a gas burner, without any delay in response time: it does not need time to cool down or heat up like traditional heating elements. Roasting times and flexibility are directly comparable, and roasting results from the gas-heated roasters can be safely transferred to the new electrical roasters while maintaining the same high quality and reproducibility.

The P05 is also available as a hydrogen-powered version. A retrofit kit for installed roasting systems (also P series II) is available on request. Learn more about PROBAT's scalable solutions for the use of alternative energy sources in roasting processes here.





Request Now







YOUR BENEFITS

CONSISTENTLY HIGH COFFEE QUALITY

Thermocouples for recording machine- and process-related data enable optimum control over the roasting process for constant and reproducible roasting results.





FLEXIBILITY

The extended batch size range and individually controllable frequency converters ensure maximum flexibility in the aroma development of different coffee types. The adjustable cooling sieve outlet (P05 and P12) allows a flexible installation.





EFFICIENCY

The simultaneous roasting and cooling process shortens cycle times. The optimized thermal insulation ensures particular energy efficiency.





INDIVIDUALITY

The traditional look can be individually rounded off according to personal preference by adapting the color of the roasting machine body, the hood as well as different front design parts – guaranteed unique for every roastery!









VERSIONS

Roasting timeRoasting timeRoasting time[min]
Roasting capacityRoasting capacityRoasting capacity[kg/h]
Batch sizeBatch sizeBatch size[kg]
HeatingHeatingHeating
Space requirementSpace requirementSpace requirementmin. - max. [m²]
Recommended room heightRecommended room heightRecommended room height[m]
DimensionsDimensionsDimensions
P01
Roasting timeRoasting timeRoasting time[min]
8-20
Roasting capacityRoasting capacityRoasting capacity[kg/h]
4
Batch sizeBatch sizeBatch size[kg]
0.8-1.2
HeatingHeatingHeating
electrical
Space requirementSpace requirementSpace requirementmin. - max. [m²]
2 - 3
Recommended room heightRecommended room heightRecommended room height[m]
2.0
DimensionsDimensionsDimensions
PDF
P05
Roasting timeRoasting timeRoasting time[min]
10-20
Roasting capacityRoasting capacityRoasting capacity[kg/h]
17
Batch sizeBatch sizeBatch size[kg]
1-6
HeatingHeatingHeating
propane, natural gas, hydrogen, electrical
Space requirementSpace requirementSpace requirementmin. - max. [m²]
5 - 10
Recommended room heightRecommended room heightRecommended room height[m]
2.5
DimensionsDimensionsDimensions
PDF
P12
Roasting timeRoasting timeRoasting time[min]
10-20
Roasting capacityRoasting capacityRoasting capacity[kg/h]
40
Batch sizeBatch sizeBatch size[kg]
1-15
HeatingHeatingHeating
propane, natural gas, electrical
Space requirementSpace requirementSpace requirementmin. - max. [m²]
7 - 18
Recommended room heightRecommended room heightRecommended room height[m]
2.5
DimensionsDimensionsDimensions
PDF
P25
Roasting timeRoasting timeRoasting time[min]
12-20
Roasting capacityRoasting capacityRoasting capacity[kg/h]
85
Batch sizeBatch sizeBatch size[kg]
1-30
HeatingHeatingHeating
propane, natural gas, electrical
Space requirementSpace requirementSpace requirementmin. - max. [m²]
10 - 21
Recommended room heightRecommended room heightRecommended room height[m]
3.0
DimensionsDimensionsDimensions
PDF

» Configurator





» FAQ: Alternative Heating Solutions



CONTROL

The completely new integrated control system of the P series is a web-based software solution, that, except for the P01, can be run from a touchscreen mounted on the machine. A network connection is required when controlling the roaster via a third-party device. For smooth data transfer, the external software systems Cropster and Artisan can easily be connected via interfaces. The control system is updatable and upgradeable, with automatic safety chains in the background, thus guaranteeing stable, safe and future-proof roasting processes.

HMI
The application-oriented and intuitive user interface of the control solution is clearly visualized in full-scope via an ergonomic 15.6-inch touch screen. The dashboard is customizable, for example in terms of parameters to be displayed, language and color, with the possibility to arrange all data individually on the screen. To show additional levels, the touch panel can be connected to third devices – regardless of the operating system – which may then also be used to control the roaster.

DATA MANAGEMENT
The roasting machines of the P series are equipped with thermocouples as standard to document product and exhaust air temperature. To get the maximum out of the coffee beans, all P series roasters from P05 onwards can be fitted with additional sensors for supply, ambient and cooling exhaust air temperature. All machine and process data are logged in a history. Events, such as first or second crack, can be added either during or after the roasting process.

REFLECTION CONTROL
The pioneering control system of the P series enables safe and automatic reproduction of all stored user-defined settings via recipe management. The automatic adjustment of the burner enables exact tracking of roasting profiles according to a pre-defined temperature. Depending on the equipment of the machine, this can be, for example, the product, supply air or exhaust air temperature.  All recipes – considering a possible correction factor – can safely be transferred to other roasting machines while maintaining consistency.
